CNCTOPBAOS DDCS Expert 5 Axis CNC Controller System Offline Stand-Alone PLC Servo Stepper Motor Motion Control 1000KHz with MPG Handwheel with M3K Extended Keyboard with Two 75W 24V DC Power Supply
$645.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by choiceresources.co.uk
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$645.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by choiceresources.co.uk
Free 30-day returns Details
Product details
| Management number | 210095864 | Release Date | 2026/04/02 | List Price | $258.00 | Model Number | 210095864 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Package includes:1 x 5 Axis CNC Offline Standalone motion controller DDCS-EXPERT;1 x 4GB USB Flash drive;1 x M3K extended keyboard;1x matching cable;1 x USB extension cable;1x 4GB USB flash drive;1 x network cable;2 x 75W 24V DC power supply;1 x 5 Axis MPG Pendant Handwheel with E-Stop
- Introduction: DDCS EXPERT Supports Max. 5 Axis; 1MHz 1000KHz output frequency for each axis; 7 inch full color display screen; resolution ratio: 1024x600, 40 operation keys; ARM controls the human-computer interface and code analysis and the FPGA provides the underlying algorithms and creates the control pulse; The internal operating system is Linux based

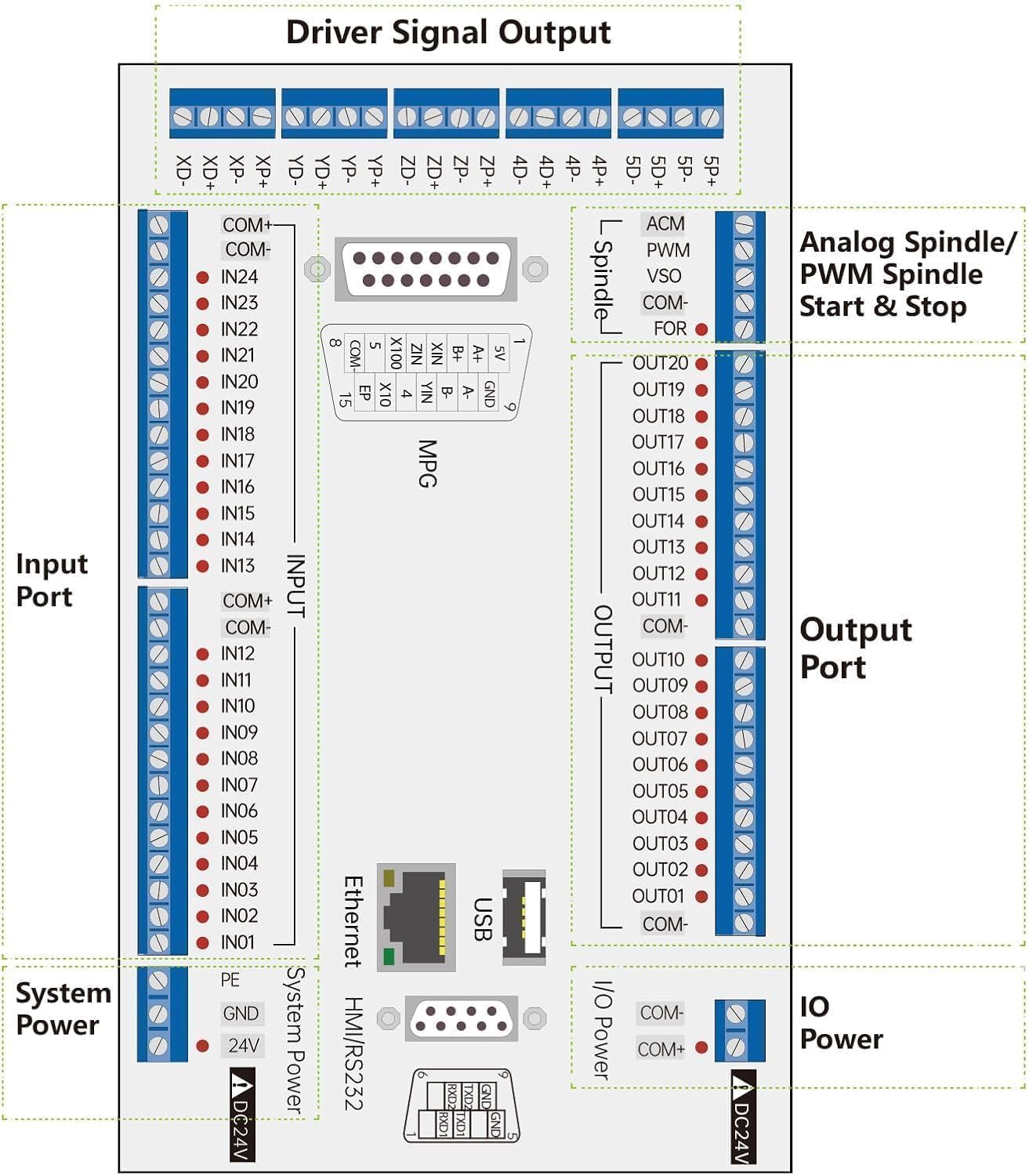

- Main Features: 24 photoelectric isolated digital inputs, 21 photoelectric isolated digital outputs;Analog spindle control 0-10V spindle control, also support PWM Output; Compatible with standard G-code,support popular CAD/CAM software, such as ArtCam, MasterCam, ProE, JDSoft SurfMill, Aspire, Fusion 360 and so on
- More Features: Magazine type: Supports multiple spindle mode, support straight Tool Magazine, gantry type Magazine, disk type magazine; Probe Mode: Supprt Floating Probe and Fixed Probe; Backlash compensation methods: direction gap compensation, radius gap compensation, length compensation
- The control system can preview the processing path before machining, and it makes the system more steady, working smoothy and precise etc Applications: The DDCS Expert can be used for many styles and types of CNC machines, Lathes, CNC Routers,Pick and Place and Milling Machine, lathe and cutters are just a few examples
| Color | gray |
|---|---|
| Voltage | 24 Volts |
| Brand Name | CNCTOPBAOS |
| Item Weight | 8.8 Pounds |
| Display Type | LCD |
| Manufacturer | Changzhou Rattm Motor Co.,Ltd |
| Material Type | Plastic |
| Included Components | No |
