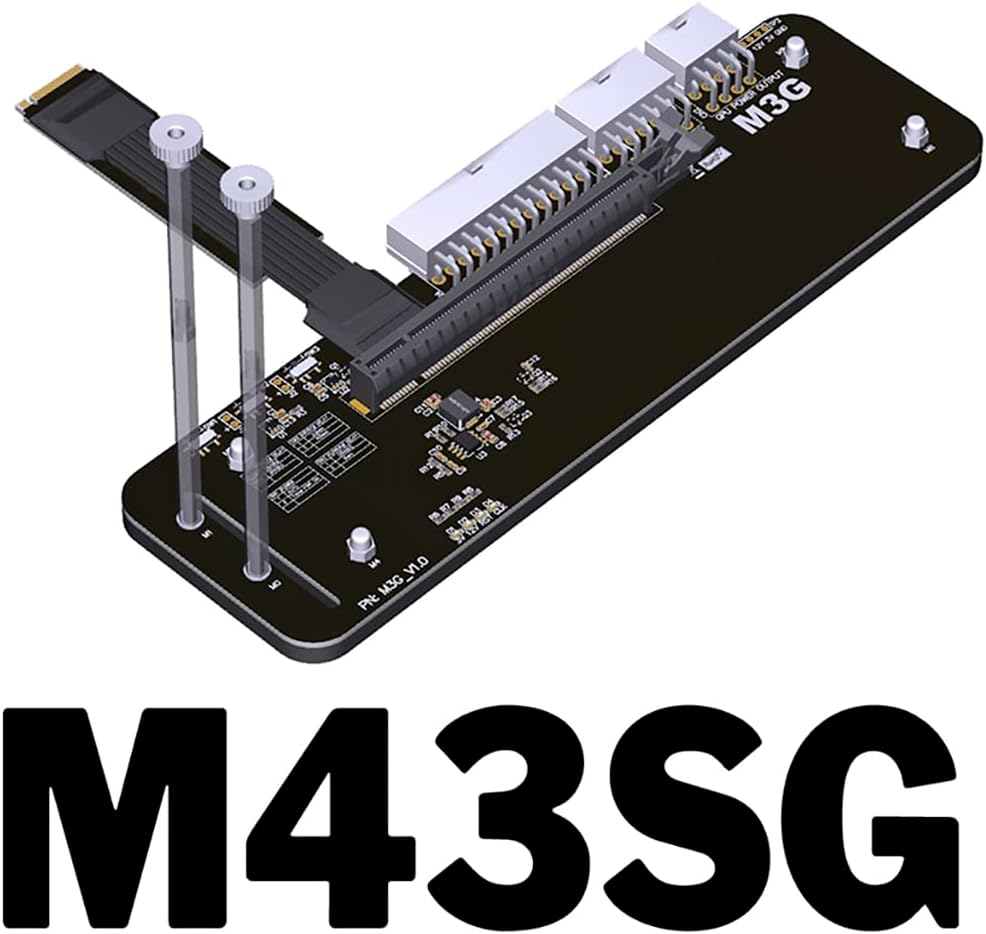

JMT ADT-M43SG M.2 NVMe M Key to PCIe4.0 X16 External Bracket 64Gbps Full Speed for Graphics Card Above 1660 (M43SG-25cm)

JMT ADT-M43SG M.2 NVMe M Key to PCIe4.0 X16 External Bracket 64Gbps Full Speed for Graphics Card Above 1660 Switches Detail: SW1, Power Forced Start Switch, 1 for automatic startup, 2 for forced startup, please cut to 1 for automatic startup. SW2, PERST # signal delay switch, 1 delay 2.2 seconds, 2 delay 4.5 seconds, with eGPU software, for graphics card compatibility optimization, the current software does not support, please cut to 1 SW3, CLKRUN # signal delay switch, 1 is closed, 2 is delayed for 9 seconds, with eGPU software, for graphics card compatibility optimization, the current software does not support, please cut to 1 J1, PERST # signal delay switch, OPEN to open delay function, SHORT to close delay function, the current software does not support, please insert the jumper cap SHORT. J2, CLKRUN_Capacitance Delay, currently the software does not support, only for R&D engineers plug in capacitance adjustment delay testing. It takes about 2.2 seconds to insert a 1uF capacitor, 5 seconds to insert a 2.2u capacitor, and so on. Installation Steps: 1. Install the hexagonal copper pillar and insert the graphics card into the PCIe x16 slot. The screw is tightened so that the graphics card will not shake or fall off. 2. Install ATX power supply , including graphics card power cord should also be connected, after installed. 3. You can plug in the M.2 cable when the computer is off. After power on, the ATX power supply will automatically start the fan to turn. The system will recognize the card automatically. Please install the graphics card driver. The installation of the driving process may prompt the computer to restart. 4. finish.

• Graphics Card Compatibility: M.2 NVMe interface, Only support for new graphics cards after 2015(Graphics Card after 1660 compatible and stable, old graphics cards shipped before 2014 are not supported).
• Motherboard Compatibility: Compatible with Notebook, ITX/STX motherboards, NUC. Only Supports M.2 NVMe interface, Does not support M.2 SATA / M.2 WiFi / M.2 WWAN / USB interface.
• Power Description: The model that supports the power supply is D 12V/18A/220W power supply, or the standard ATX power supply 500W above. Please prepare or purchase the power separately.
• System Requires: PC system requires WIN10 1909 version or higher. If it is lower than WIN10 1909 version, pls upgrade the system or reinstall before use.Otherwise the connected GPU doesn't recognize by system.
• Accessories: Hexagonal brass post and related screws for fixing the graphics card, and a single 6P to dual 8P power adapter cable for the graphics card.
