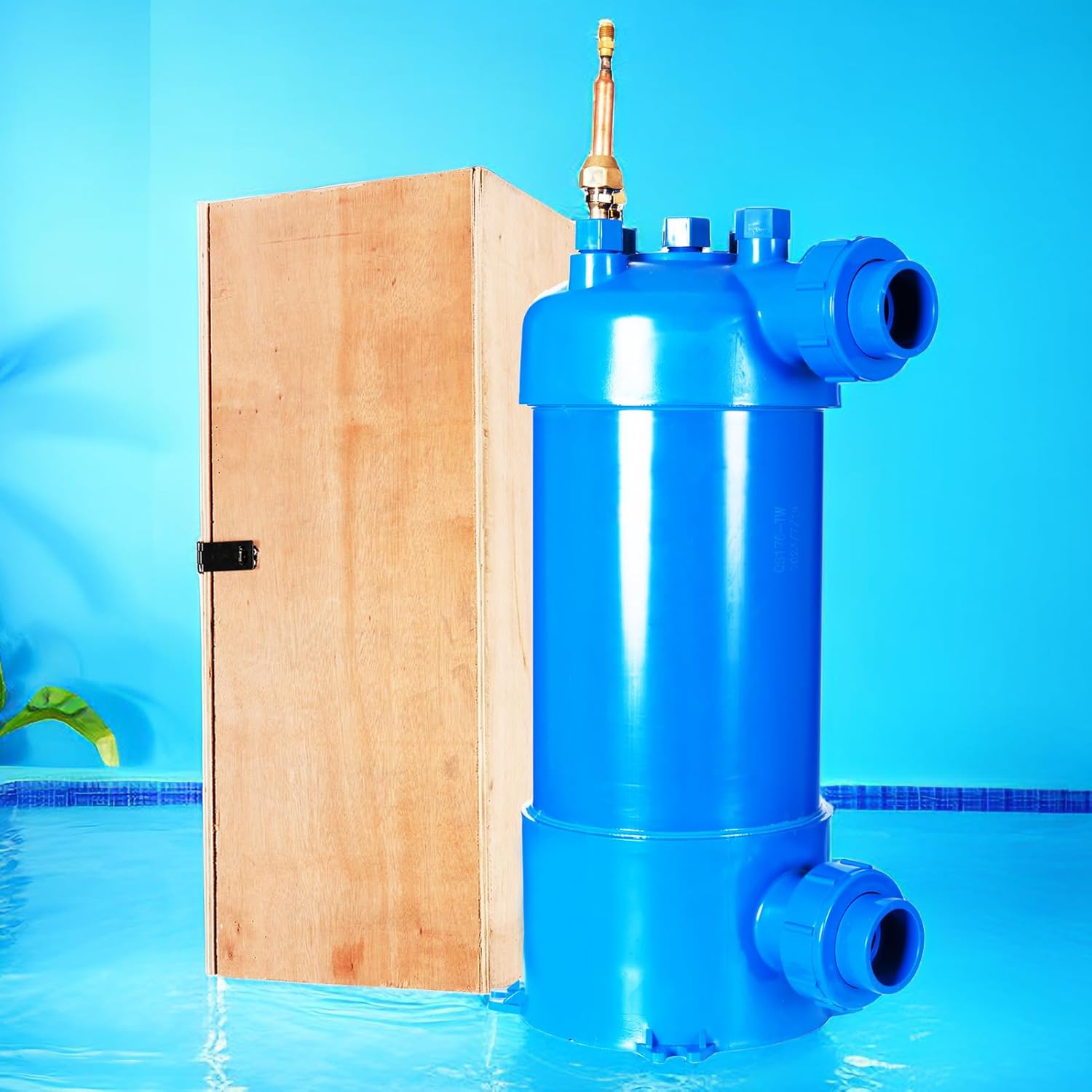

QUELECO Pool Heat Exchanger Titanium Twisted Tube PVC Shell for Swimming Pool Heat Pump Solar Spa Heating and Cooling(85kBtu / 25kw)

85KBtu (25KW) Water Freon Condenser , Pool Heat ExchangerItem No.:QS250-TWInner Tube: Titanium Twisted TubeTube Size: Diameter 3/4"×41' Lenght (19×12,600mm)Outer Shell: PVC Heating Capacity: 85KBtu (25KW)Water Flow: 52.83 USGPMGas In/Out: Diameter 1/2" (12.7mm) / 3/4" (19 mm)Water Inlet/Outlet: ID 1.5" (48.3mm) PVC unionType: VerticalWorking Condition:Water in 26°C(78.8°F), water out 28°C(82.4°F).The working temperature range on the water side is 3°C(37°F) to 35°C(95°F), with a pressure bearing capacity of 87 PSI, refrigerant side bearing 653 PSI.*Regarding to the water connector, if you need 50mm or other size please let us know.

• 【Customizable】Our titanium heat exchangers can be customized in dimension, water connector, and heat exchange capacity. If you have any special requirements, please let us know.
• 【Material】Our heat exchanger uses 99.99% pure titanium tubes as thermal conductors, has a longer service life compared to stainless steel and copper materials. Its anti-corrosion function will save you more costs for product repair and maintenance.
• 【Parameter】Heating Capacity: 85 KBtu (25Kw)---base on water in 26°C(78.8°F), water out 28°C(82.4°F). The temperature range on the water side is 3°C(37°F) to 35°C(95°F), with a pressure bearing capacity of 87 PSI, refrigerant side bearing 653 PSI
• 【Applications】Queleco pool heat exchanger perfect for Swimming Pool Heat Pump, Aquarium Chiller, Marine Refrigerant System, Solar Energy Heater, Spa Heating, Aquaculture, Pharmacy, Food industry, Electroplating Industry, Heat Recovery and so on.
• 【Warranty】Our heat exchanger has a 1-year warranty. If you have any questions about the product, please feel free to contact us.
