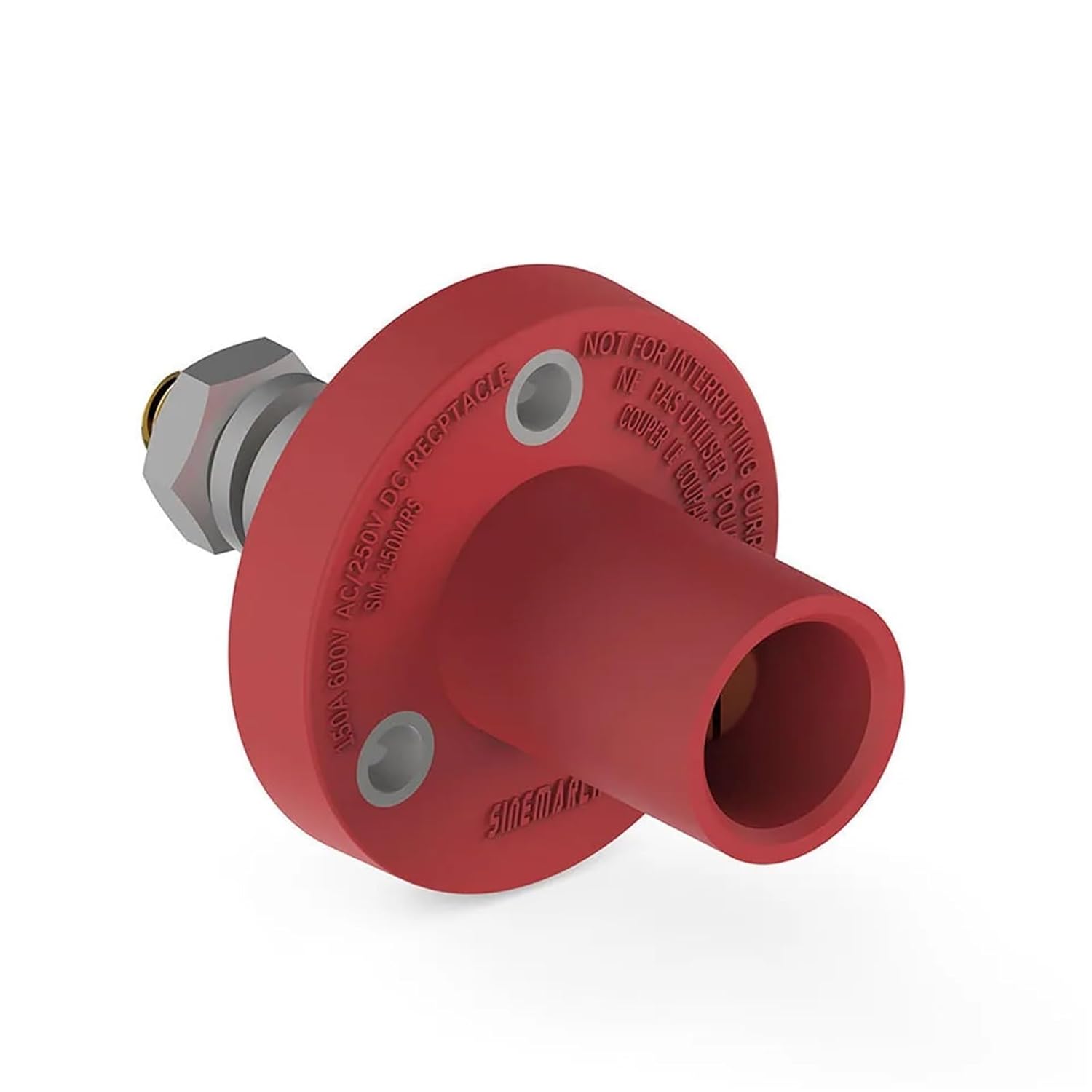

R-LOK 150A Panel Mounted Male Socket American Standard Single Pole Power Connector Compatible with Cam Lock(Red)

Electrical ConnectorR-LOK 150A Panel Mounted Male Socket American Standard Single Pole Power Connector Compatible with Cam LockOverview:The 150A R-LOK series is an American Standard single pole power connector with double cam design. The housing is made from highly insulated and high heat TPE. The contact is made of copper alloy, which has high conductivity. The 150A R-LOK series is suitable for lower power applications.1.Highly insulated and high heat TPE housing2.Copper alloy contact provides high conductivity3.Color-coded for easy phase identificationPlease note that do notreuse locating screw. Reusing locating screw might expose the operation to electrical danger.Specifications:Product name: 150A 1P R-LOK Male SocketRated Voltage(AC): 600V(Max.)Rated Current: 150AShell Material:TPE (Thermoplastic Elastomer)Contact Material: Copper alloyApplicable Nut: M8Link Mode: Screw crimpingPackage Content:1 x 150A R-LOK male socket==========Model Number : SM-150MRSDIY Supplies : ElectricalOutput Voltage : 150ARated Voltage(AC) : 600V (Max.)Rated Current : 150AShell Material : TPE (Thermoplastic Elastomer)Contact Material : Copper alloyApplicable Nut : M8Link Mode : Screw crimping

• The 150A R-LOK series is an American Standard single pole power connector with double cam design. The housing is made from highly insulated and high heat TPE. The contact is made of copper alloy, which has high conductivity. The 150A R-LOK series is suitable for lower power applications.
