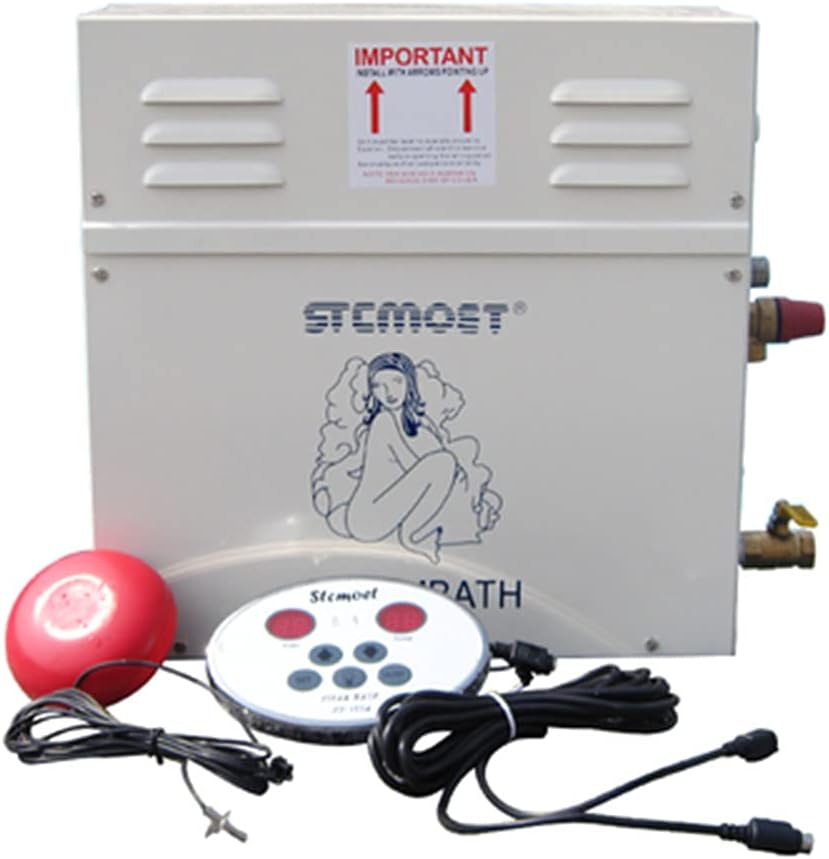

Superior Steam Generator, 220V-240V Steam Showers Sauna Steam Generator, Bath Generator with Programmable Controller for Home Sauna Bath SPA (ST90: 9KW, 220V, 423ft3)

Specification: Power: 3KW/4KW/6KW/7KW/8KW/9KW/15KW Voltage :220-240V, 50HZ, 15KW requires 380V Power source Electric Current :3KW-14A, 4.5KW-20.5A, 6KW-27.3A, 7KW-31.8A, 8KW-36.4A, 9KW-41A, 15KW-23A Maximum Heating Space(m³) :5M³-21M³ Wire Parameter (copper core wire) :4 Square millimeters Dimensions : (length x Wideth x Hight) 3KW: 300x130x230mm 4.5kW: 320x130x335mm 6kW: 395x145x395mm 7kW: 445x165x395mm 8kW: 445x165x395mm 9kW: 445x165x395mm 15kW: 500x200x520mm Adjusting Temperature :35℃-55℃ Adjusting Time:1-60 min Features: -ISO9001 quality certification and CE approved. -Digital timer and water temp control. -Ventilation fan for better air and safe, remote control, safe protection function. -The steam generator can be equipped with an optional auto drain to enhance performance. -Stainless steel water box, electronic control panel and safety press button. Pipeline Installation: 1.Water inlet pipe - the metal pipe is introduced with the existing 15mm pipe, with a 15mm mental hose separate connected to the inlet port of the machine and the valve of the water supply pipe. 2.Steam outlet pipe -steam pipe should use a copper tube whose diameter is not less than 15mm , the steam pipe length is not more than 3 meters, and if the steam pipe length is over 3 meters, it should make heat preservation treatment . 3.Drain pipe - to prevent damage to the body of the house during drainage, a water pipe that is not less than 15mm should be connected to direct drain off water. Package include: 1 steam generator 1 controller 2 wires 1 steam Sprayer 1 user manual

• 【Low Noise Emission】 Produce a consistent flow of soft and soothing steam thanks to the cleverly designed dual tank technology while minimizing any distracting operational noises.
• 【Premium Quality】The inside adopts a 304 stainless steel heating tube, which heats quickly and radiates evenly. It can immediately heat up to produce steam. The steam shower has ISO9001 quality certification and CE certification.
• 【Easy to Install】Steam Generator is very convenient to assemble. First, you need to connect two Ns in parallel with a short wire, then you need to connect two Ls in parallel with a short wire, and finally, you need 2 wires to connect one L port and one N port to the external power supply.
• 【Safer to Use】Quick steaming：Bath Generator suitable space heating 9m³,LED Digital display & Light system control.Protection of water shortage & Over-high temperature protection. Long distance signal transmission,the longest distance can be 50m.Over-high pressure protection,prevent tank from expanding,in the case the steam head has been blocked.
• 【Features】Safety valve: plays a safety role in the steam system. (The case above 6KW is equipped with safety valve) steam outlet: steam engine built-in reinforced water tank. Drainage port: manual drainage function, high-power models recommended to install automatic drainage system.
