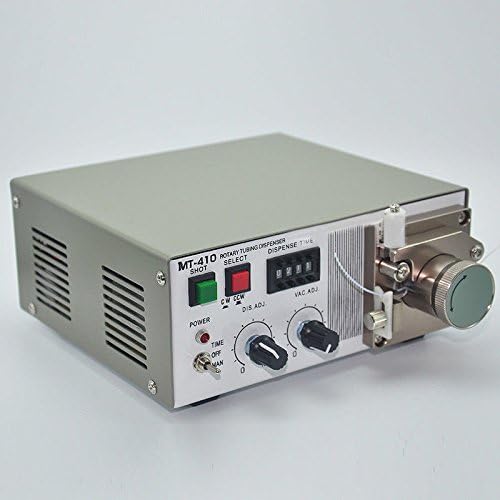

TOPCHANCES 110V MT-410 Auto/Manual Rotary Tubing Dispenser Quick Dry Glue Dispenser Machine

Application: 1. Plug connector, the phone keypad, remote control buttons, VCD, DVD shaved head, head, rubber solution and other precision machinery sub decorate precision spit plastic operationsApplication: 2. For fast rubber, cyanoacrylate, electrolyte, ink, liquid, oil viscosity 10000PCS less liquidApplication: 3. Suitable: adhesive, fixed, point-shaped coating, linear coating, etc Parameter: 1. Input voltage:110V 2. Power:30W 3. Minimum throughput: 0.0001ml 4. Spit glue Adjustment range: 0 to 999.9 5. Snuffback glue Adjustment range: 0 to 400 6. Suitable material viscosity: 10000PCS less 7. Spit modes: steady operation mode / manual control mode 8. Dimensions: 188 * 168 * 88mm 9. Weight: 3.5kg Operation method: Manual mode: 1. Connect the power select switch to MAN position, the indicator lights 2. Install the Teflon tube 3. Set Reversible CW / CCW key switch, select CCW key transition, we selected CW clockwise 3. Set the suction VAC, ADJ, select the desired value, manual mode, the proposed closure of reverse snuffback 4. Adjust the DIS, ADJ knob to set the optimum speed (best speed of 50 ~ 120RPM) 5. "SHOT" button, or manually switch, foot switch complete Automatic mode: 1. Turn the switch to "TIME" position, the indicator lights 2.Dispenser Time key to set the dispensing angle 3.2.3.4.5.6 work program Note: The moment dispenser in the state rotated counterclockwise, (Dispenser Time) function key to switch back to suck, suck back button (VAC, ADJ) into the set dispensing angle Package Included: 1 x MT-410 Rotary Tubing Dispenser Machine 1 x Dispenser Pen 1 x Pedal

• Application:<br> 1. Plug connector, the phone keypad, remote control buttons, VCD, DVD shaved head, head, rubber solution and other precision machinery sub decorate precision spit plastic operationsApplication:<br> 2. For fast rubber, cyanoacrylate, electrolyte, ink, liquid, oil viscosity 10000PCS less liquidApplication:<br> 3. Suitable: adhesive, fixed, point-shaped coating, linear coating, etc<br><br> Parameter:<br> 1. Input voltage:110V<br> 2. Power:30W<br> 3. Minimum throughput: 0.0001ml
• Built-in high-precision potentiometer, you can freely adjust the dispensing time.
• The standard equipment is equipped with a vacuum mechanism to prevent leakage.
• Have manual (MAN) / quantitative (TIME) two modes of dispensing function.
• Wide-range adjustment from 0.05Mpa to 0.70Mpa, so high-viscosity materials can also be processed.
