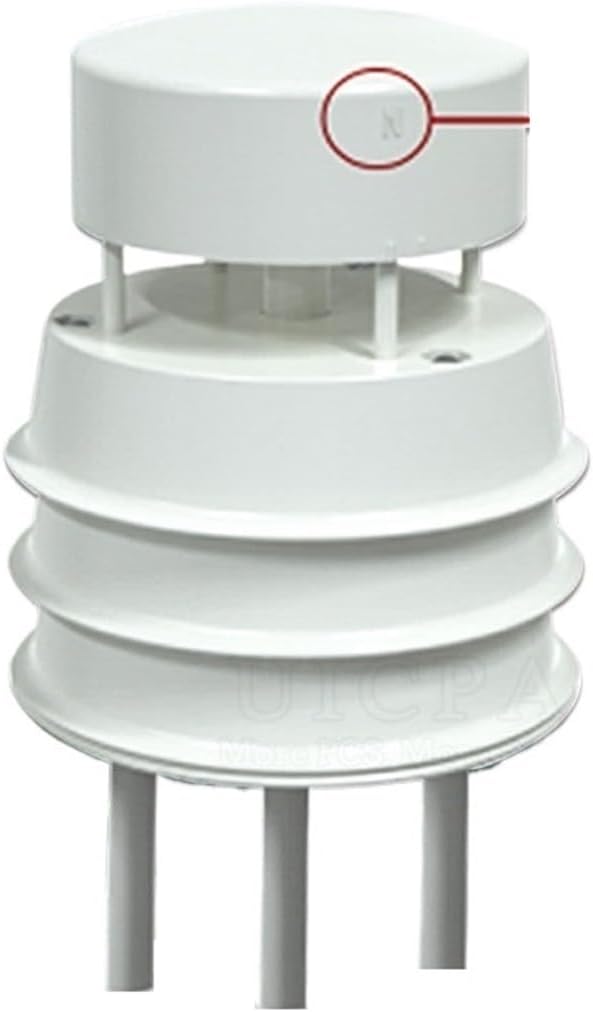

Ultrasonic Wind Speed and Direction Sensor Module Output RS485 0-5V 0-10V 4-20mA 0-40m/s Detection Weather Station Transmitter(0-5V Output)

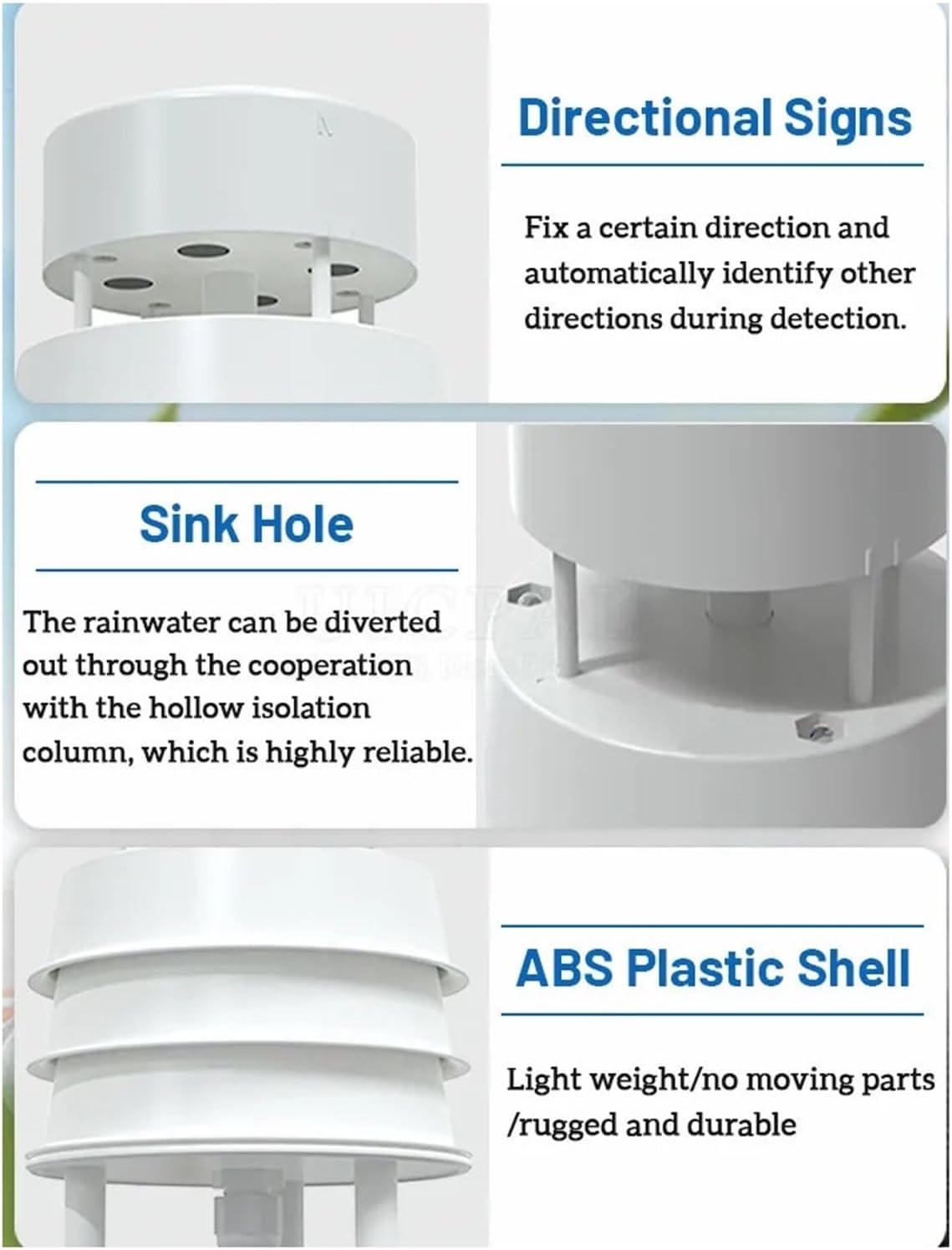

SensorsDetection Weather Station Transmitter Output RS485 0-5V 0-10V 4-20mA 0-40m/s Ultrasonic Wind Speed and Direction Sensor ModuleProduct overview:The miniature ultrasonic wind speed and direction sensor is a wind speed and direction measuring instrument based on the ultrasonic principle. It uses the transmitted sound pulse to measure the phase difference of the receiver to calculate the wind speed and direction. The sensor can measure the instantaneous value of wind speed and direction at the same time. It is widely used in the fields of weather, ocean, environment, airport, port, laboratory, industry, agriculture and traffic.Functional features:No angle limit, can measure wind speed and direction data at the same time.No moving parts, less wear and long service life.Adopting the random error identification technology, the low discrete error of the measurement can be ensured under the strong wind to make the output more stable.Adopt ABS Engineering Plastic Shell, lightweight design, portable, easy to install and disassemble.The product adopts 485 communication interface, standard ModBus-RTU communication protocol, communication address and baud rate can be set, the furthest communication distance is 2000 metersNo maintenance and on-site calibration required.Main parameters:DCpower supply (default)10-30VDCPowerconsumption0.12W RangeWindspeed0-40m/s(customizable)Winddirection0~ 360 °PrecisionWindspeed±0.5 + 2% FSWinddirection±3 °ResolutionWindspeed0.01m/sWinddirection1°Workenvironment-40-80 ° C, 0-95% RHWindstrength75m/sResponsetime1sProtectionlevelIP65Outputsignal485(Modbus-RTUprotocol)is_customized : YesTheory : Ultrasonic SensorModel Number : Ultrasoni
